VETUS Drinking Water Hose (Per meter)

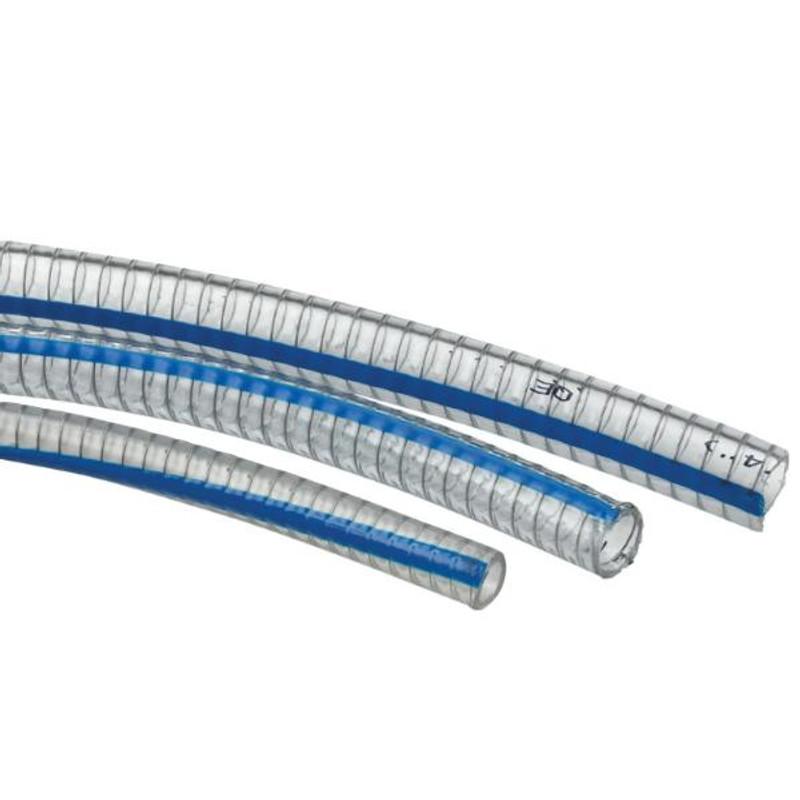

Description VETUS Drinking Water Hose (Per meter) This hose is suitable for transportation of fresh water on board, both suction and pressure. HIGHLIGHTS Temperature-resistant between 23 and 149ºF (-5 and 65ºC). Made of transparent PVC with spiraled steel inlay. See complete specifications in the table below: PRODUCT NUMBER INTERNAL DIAMETER Ø EXTERNAL DIAMETER Ø WEIGHT MAX PRESSURE (BAR) BENDING RADIUS ROLL LENGTH HCHDS CLAMP TO SUIT W4 MATERIAL HCS CLAMP TO SUIT W4 MATERIAL DWHOSE10B 10mm 16mm 0.16kg/m 7 20mm 30 Metres – HCS12 DWHOSE12B 12mm 18mm 0.18kg/m 7 25mm 30 Metres – HCS12 DWHOSE16B 16mm 22mm 0.24kg/m 6 35mm 30 Metres – HCS20 DWHOSE19B 19mm 26mm 0.32kg/m 5 50mm 30 Metres – HCS20 DWHOSE25B 25mm 33mm 0.53kg/m 5 60mm 30 Metres – HCS32 DWHOSE28B 28mm 36mm 0.57kg/m 4.5 66mm 30 Metres HCHDS034 HCS32 DWHOSE30B 30mm 38mm 0.60kg/m 4.5 70mm 30 Metres HCHDS037 HCS32 DWHOSE32B 32mm 40mm 0.56kg/m 4.5 75mm 30 Metres HCHDS040 HCS40 DWHOSE35B 35mm 44mm 0.73kg/m 4 80mm 30 Metres HCHDS043 HCS40 DWHOSE38B 38mm 47mm 0.80kg/m 4 90mm 30 Metres HCHDS047 HCS40 DWHOSE40B 40mm 49mm 0.87kg/m 3 95mm 10 Metres HCHDS047 HCS40 DWHOSE45B 45mm 55mm 1.10kg/m 3 105mm 10 Metres HCHDS055 HCS50 DWHOSE50B 50mm 60mm 1.20kg/m 3 125mm 10 Metres HCHDS059 HCS50 NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock. 16mm x 16mm x 1000mm
